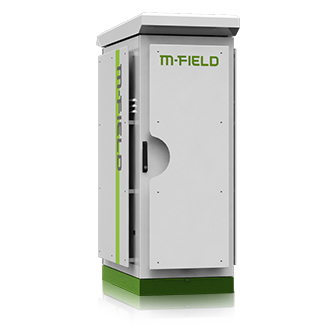

MF-UTH-10

The MF-UEH is compacted in all-in-one total solution available from fuel generation, energy storage to power generation that integrates alternative energy such as photovoltaic, wind power, battery or grid power with fuel cell system. The system store energy as hydrogen from electricity so that the stored energy never lose. MF-UEH Series provide 1~3kW power and back up for over 8kWh at maximum power output; it is also available for customization depending on your requirements. With MF-UEH products, there is no need to worry about hydrogen fuel because the fuel for the system is only pure water. It is an ideal system for residential backup, especially suitable for remote industrial application with fuel on demand, and the most importantly, environmental-friendly.

MF-UEH Series
Module Specifications
Product Description Energy Storage
& Fuel Cell Power Generator
Power Output 1kW/3kW
Input Voltage 48Vdc/220~240Vac Output Voltage 20A@48Vdc/60A@48Vdc
Maximum Current Output 20A/60A Fuel Spec N/A
Fuel Pressure 44~120 psi (3~8.2 bar) Dimensions L110 x W70 x H180 cm (43.3 x 27.5 x 70.9 in.)
Weight 250/380 kg Cooling System Air

Operating Efficiency
Hydrogen Consumption 752 Liter / kW-hr Fuel Cell Efficiency >40%

Environmental Condition
Ambient Temperature -20~50°C Location Indoor/Outdoor

Specifications and descriptions in this document were in effect at the time of publication. M-FIELD ENERGY LTD.
reserves the right to change specifications, product appearance or to discontinue products at any time, Copyright © 2019 M-FIELD ENERGY LTD.
