CP Series

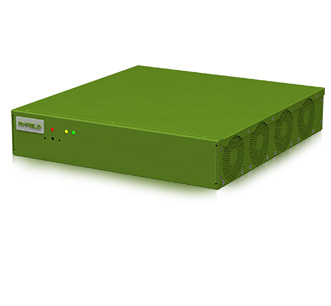

The high efficiency fuel cell converter is very important to achieve overall system electrical and operation efficiency. With the wide output voltage range characteristics of a fuel cell stack, a reliable, efficient, and compact fuel cell DC/DC is required. The CP Series converter has over 92% efficiency, which mean less hydrogen is required and more power is generated from the fuel cell stack. Its compact 19" 2U rack mountable design gives up to 9.98 W/in3 power density with voltage output from 24, 36, to 48Vdc. The CP Series converter also comes with the features of RS-485 MODBUS communication, programmable voltage, power limitation control, and current limitation control.

MF-CP Series
Module Specifications
Product Description Converter Power Output 2.5kW/3kW
Input Voltage 15~27Vdc/30~80Vdc
Output Voltage 26V (Set Point) /43V (Set Point)
/52V (Set Point)
Maximum Current Output 48A/58A/100A/120A/278A Fuel Spec N/A
Fuel Pressure N/A Dimensions 42.3 x 45.1 x 8.6 cm
Weight Varies Cooling System N/A
Communication Specifcation
Physical Interface RS-485/CAN Bus Protocol M-Field Mod Bus
Environmental Condition
Ambient Temperature -20~60°C Location Indoor
